DESCRIPTION

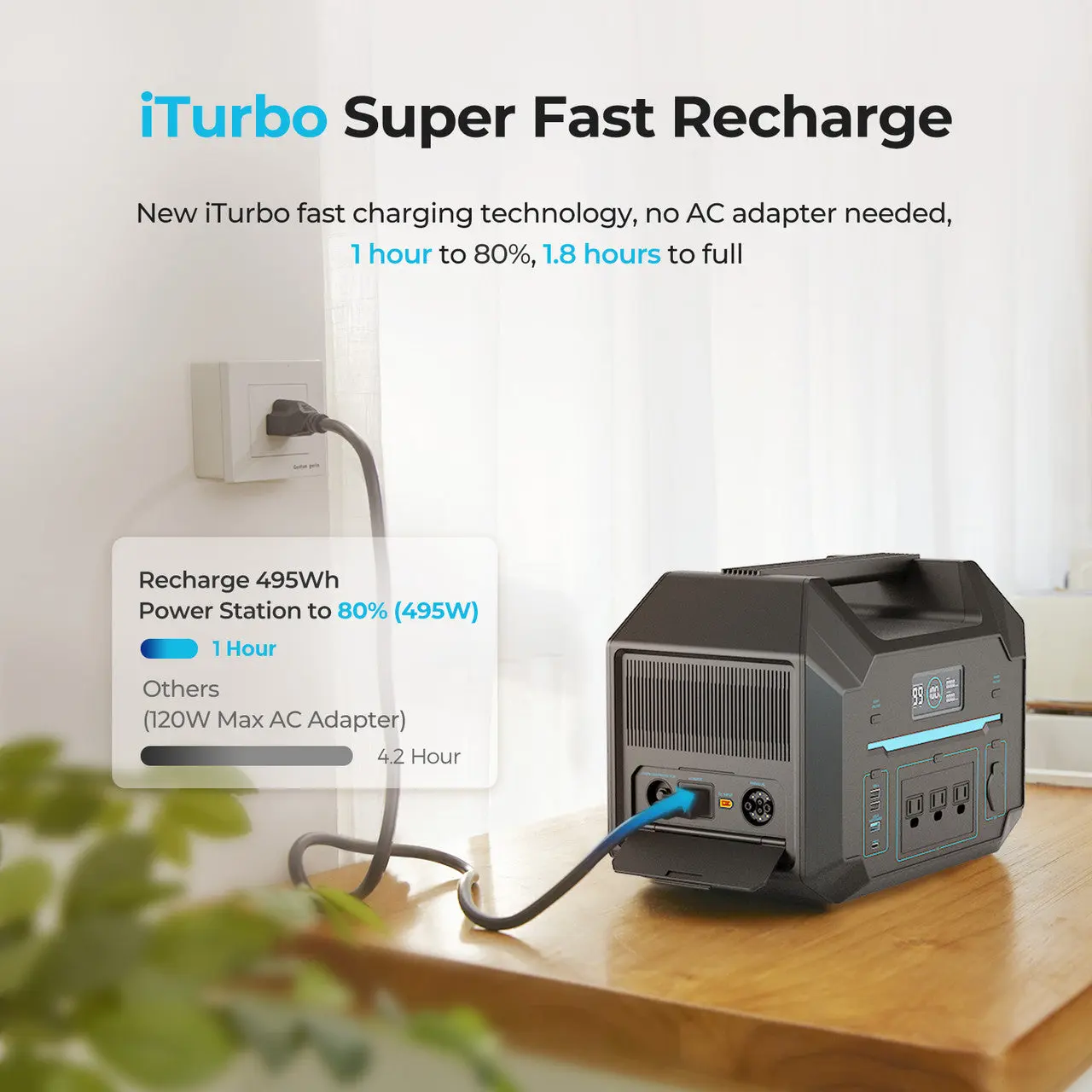

【1-Hour AC Fast Recharge】 Recharge the portable power station from 0% to 80% using an AC outlet in only 1 hour with super-fast iTurbo technology. With iTurbo, renogy PHX500 solar generator recharges 4 times faster than conventional power station.

【Quick Charging & Capacity】 With an output of up to 800W (Surge 1600W), this portable generator of large capacity 495wh, can power up to 8 devices simultaneously with multiple outlet options, including 3 pure sine wave AC outlets, 1*18W USB-A fast charging ports, 2*12W USB-A ports, 1*100W USB-C port, and 1 CIG port. The USB-C port can charge your devices at full speed without the bulky adapters, including phones, laptops, and handheld game consoles. With a whole host of ports, from 600W AC outlets to USB-C, we've got all your device's plugs covered.

【Clean, Fast Solar Charging】 The portable power station camping is compatible with renogy e.flex 220W portable solar panel, getting recharged to 80% in 2.5 hours. The integrated MPPT algorithm optimizes solar energy generation efficiency to operate at its max power point, making them ideal portable power kits for tent camping, overland journey and more.

【Intelligent BMS Protection & Pure Sine Wave】 Armed with a 495wh lithium-ion battery backup, the solar powered generator features 3 Pure Sine Wave AC outlets that deliver stable and safe 800W power. camping power station has a built-in advanced battery management system, auto-regulating to keep you safe with reverse polarity protection, high/low temperature protection, short circuit protection, undervoltage protection, overvoltage protection, overcurrent protection.

【Expandable for More Power】 Double your power capacity and AC output with the iStack function! Simply connect two PHX500 portable solar generators with a single-phase parallel kit (sold separately). With iStack you can expand storage capacity to 990Wh and ramp up AC output to 1440W.

【Take Control of Your Energy】 A wider monitor and customizable power button let you set up PHX500 to meet your specific power needs. The DC HOME app lets you control your connected devices remotely and monitor power status wherever you are.

【Seamless Backup Power Supply】 In the event of a power outage, connect the AC port to a wall outlet, and PHX500 portable generator for camping delivers emergency AC power with a transfer time of less than 20ms. No need to worry about interruptions to work or gaming.

If you want to know more about 100W solar panels, please click it

If you want to know more about 200W solar panels, please click it

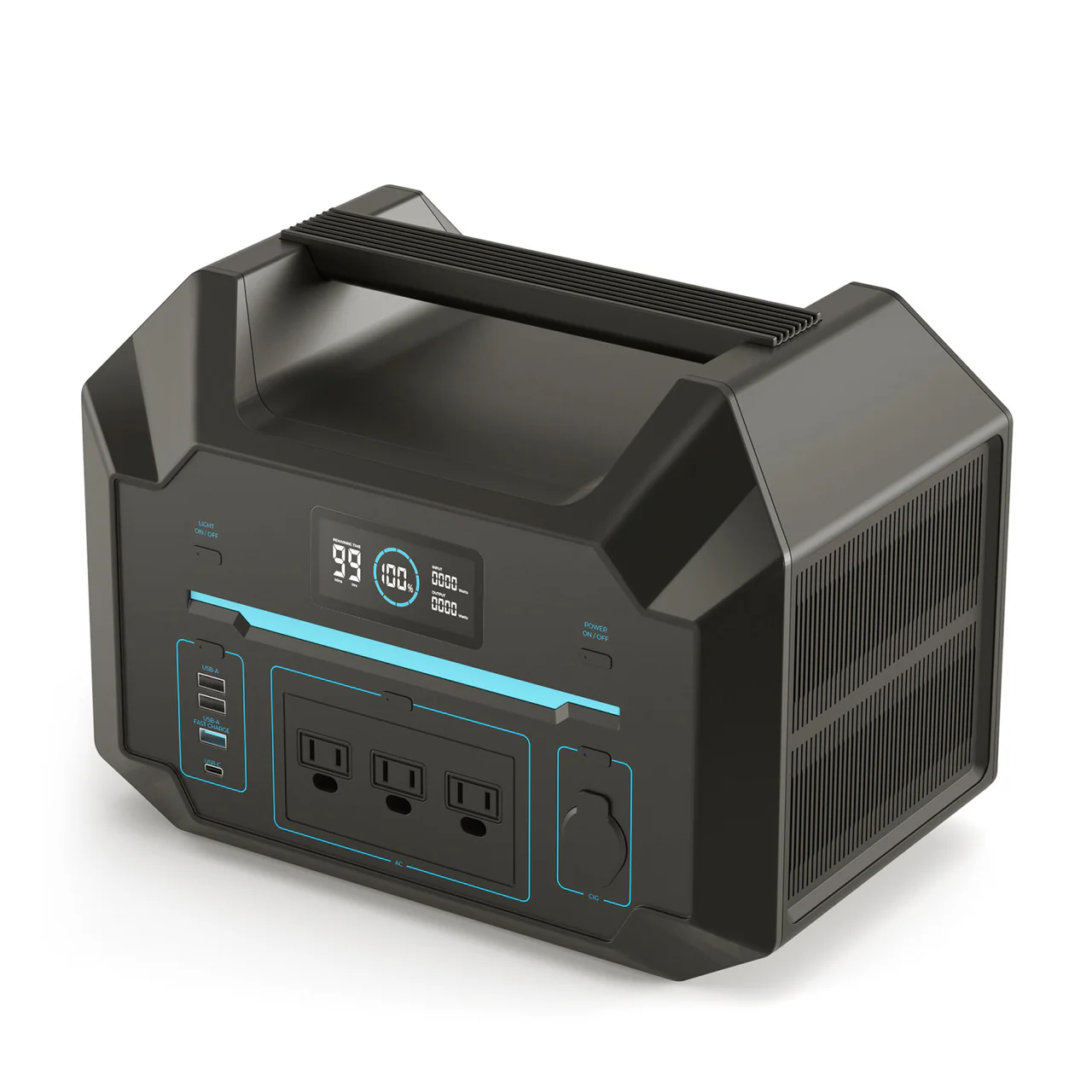

The Renogy Power Station 500 is just right for everything. Armed with a 495Wh lithium-ion battery pack and an 800W pure sine wave inverter, you've got enough power for all your precious moment on the road. Renogy Power Station 500 can power 8 devices simultaneously while getting itself recharged. The iTurbo technology allows you to recharge the Renogy Power Station 500 to 80% in just 1-hour. 3 recharging options (AC, solar, and car) allow a quick energy boost even under the worst scenarios.

Style the energy together with your friend on the go with the iStack function; simply connect two Renogy 500 power stations with a single-phase parallel kit (sold separately) to double the capacity and AC output simultaneously. The integrated strip lights offer 3 lighting modes for ambient lighting, and DC HOME app allows you to monitor and set the Renogy Power Station 500 in your way.

NOTE: A solar charging cable is included with Renogy Power Station 1000. It is ok to connect solar panel.

NOTE

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

Package Includes

Option 1:
1 x Renogy Power Station 500; 1 x 14AWG AC Power Cable; 1 x 16AWG Car Charge Cable; 1 x 16AWG Solar Charge Cable
Option 2:
1 x Renogy Power Station 500; 1 x 14AWG AC Power Cable; 1 x 16AWG Car Charge Cable; 1 x 16AWG Solar Charge Cable; 1 x E.FLEX 220 Portable Solar Panel; 1 x Carrying Case; 1 x User Manual; 1 x Ewarranty card
Option 3:
1 x Renogy Power Station 500; 1 x 14AWG AC Power Cable; 1 x 16AWG Car Charge Cable; 1 x 16AWG Solar Charge Cable; 1 x Single Phase Parallel Kit

1.How many solar panels do I need to top up Renogy Power Station 500?

The maximum solar input of Renogy Power Station 500 is 200W. We recommend two E.FLEX 110 Portable Solar Panels or one E.FLEX 220 (sold separately) to recharge Renogy Power Station 500 solar powered generator faster.

2. Will Renogy Power Station 500 automatically shut off output ports when it is not in operation?

Renogy 500 solar portable power station features timeout settings, automatically turning off output ports when devices draw low or no power from these ports to save energy. The default timeout setting is 1 hour. Alternatively, you can adjust or disable the timeout setting on DC Home app based on your needs.

3.What happens when the AC load exceeds 800W?

Renogy Power Station 500 can automatically identify types of load with iBoost technology. For resistive load, Renogy Power Station 500 lowers the power consumption drawn by the load to keep it operating without triggering AC overload protection.

4. Are batteries inside Renogy Power Station 500 replaceable? Can they be expanded in a certain way?

No, the lithium iron phosphate batteries in Renogy Power Station 500 cannot be replaced. If you wish to use high-powered appliances, you can connect two Renogy Power Station 500 through a parallel kit to get 990Wh of backup battery storage and max. 1440W AC output.

5. Can I use Renogy Power Station 500 as an uninterruptible power supply (UPS)?

Please note that Renogy Power Station 500 cannot switch from grid supply to the emergency AC power in less than 0ms like a professional UPS does. We don't advise using the Renogy Power Station 500 as UPS for critical devices like data servers or workstations. Make sure that the output load is rated below 800W.

6. What accessories are included with the Renogy 500 solar power generator?

Renogy Power Station 500 comes with an AC power cable (5.91 ft / 1.8 m), a car charge cable (4.92 ft / 1.5 m), a solar charge cable (9.84 ft / 3 m), and a user guide.

7. Will Renogy Power Station 500 automatically shut off output ports when it is not in operation?

8.Can I lower the charging speed when recharging my Renogy Power Station 500?

Yes, please connect your Renogy Power Station 500 with DC Home app via Bluetooth. Then, find Input Settings and adjust the charging speed.
