*Based on an average of peak sun hours around 5-6.

4*100W 12V Rigid Solar Panel Parallel

2*200W 12V Solar Panel

NOTE

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

Package Includes

Solar Panel	*QuantityTitle**
	4*100W N-Type Rigid Solar Panel
	2*200 Watt 16BB N-Type 24V Solar Panel
	2*200W 12V Flexible Solar Panel
	Charge Controller	*QuantityTitle**
		1*Rover 40A MPPT W/ LCD & BT2 Module
		Battery	*QuantityTitle**
			2*12V 100Ah Pro Lithium Battery w/Bluetooth & Self-heating
	2*12V 100Ah Core Mini Lithium Battery w/ Self-heating Function
	2*Battery Inverter Cables
	Inverter		*QuantityTitle**
1*2000W 12V Pure Sine Wave Inverter
12000W 12V Pure Sine Wave Inverter Charger & 1Battery Inverter Cables for 3/8 in Lugs
1*300A ANL Fuse Set w/ Fuse
1*Fuse Cable
Accessory Set/Premium		*QuantityTitle**
		4*Solar Panel Mounting Z Bracket -- Set of 4
		1*Solar Y Branch Connectors MMF+FFM Pair
		1*Solar Panel to Charge Controller Adaptor Kit
		1*Battery to Charge Controller Tray Cables
	1*BT-1 Bluetooth Module (New Version)
	2*Holder w/ Fuse
	1*60A ANL Fuse Set w/ Fuse
	1*Terminals for 3/8 in Lugs

100W N-Type Rigid Solar Panel
Max Power at STC: 100W	Open Circuit Voltage: 22.79V
Short Circuit Current: 5.31A	Optimum Operating Voltage: 19.97V
Optimum Operating Current: 5.01A	Operating Temperature: -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600V DC (UL)	Module Efficiency: 20%
Dimensions: 865x578x30mm/34.1x22.8x1.2in	Weight: 5.9kg/13.0lbs
200 Watt 16BB N-Type 24V Solar Panel
Max Power at STC: 200W	Open Circuit Voltage: 37.44V
Short Circuit Current: 6.85A	Optimum Operating Voltage: 31.03V
Optimum Operating Current: 6.45A	Operating Temperature: -40°F~185°F / -40℃~85℃
Maximum System Voltage: 600 VDC UL	Maximum Series Fuse Rating: 15A
Dimensions: 1262x764x30mm/49.7x30.1x1.2in	Weight: 10.6kg/23.4lbs
200W 12V Flexible Solar Panel
Maximum Power at STC: 200W	Open-Circuit Voltage (Voc): 23.9V
Short Circuit Current: 10.74A	Optimum Operating Current (Imp): 10.02A
Maximum System Voltage: 600V DC	Maximum Series Fuse Rating: 15A
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)	Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
Weight: 4.9 kg / 10.8 lbs

Rover 40A MPPT W/ LCD & BT1 Module
Nominal Voltage: 12/24V Auto-Detect	Rated Charge Current: 40A
Max. PV Input Power: 12V/520W, 24V/1040W	Max. PV Input Voltage: 95 VDC
Operating Temperature: -4°F to 185°F ('-20℃~85℃)	Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Weight: 4.58oz (130g )
Wanderer Li 30A PWM W/ LCD & BT1 Module
Nominal System Voltage: 12 VDC	Rated Charge Current: 30A
Max. PV Input Power: 25 VDC	High Voltage Disconnect: 16V
Operating Temperature Range: -31°F - 176°F	Dimensions: 6.45 x 4.31 x 1.76 inches
Weight: 0.65 lbs
Adventurer Li- 30A PWM W/ LCD & BT1 Module
Nominal Voltage: 12 VDC/ 24 VDC	Rated Charge Current: 30A
Max. PV Input Voltage: 50 VDC	Max. PV Input Power: 12V(400W) / 24V(800W)
Storage Temperature: -31°F to 176°F	Dimensions: 6.56 x 4.50 x 1.90 inches
Weight: 0.6 lbs

12V 100AH PRO LITHIUM BATTERY W/BLUETOOTH & SELF-HEATING
Battery Type: Lithium Iron Phosphate	Rated Capacity: 100 Ah
Voltage: 12 V	Voltage Range: 10V to 14.8V
Cycle Life(0.5C,25℃): 5000 Cycles (80% DOD, 80% EOL)	Connection Method: Parallel(Up to 8)
Protection Rate: IP67	Charge Voltage: 14.4V
Maximum Charge Current: 100Ah	Maximum Discharge Current: 100Ah
Peak Discharge Current: 245A@30s	Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)	Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity: 10% to 95%	Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm)
Weight: 26.9 lbs. (12.2 kg)
12V 100Ah Core Mini Lithium Battery w/ Self-heating Function
Battery Type: Lithium Iron Phosphate	Rated Capacity (0.5C, 25°C): 100AH
Voltage: 12 V	Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD)
Charge Voltage: 14.6V	Protection Rate: IP65 (Dust-tight & splash-resistant)
Maximum Charge Current: 100A	Maximum Discharge Current: 100A
Maximum Continuous Discharging Current: 100 A	Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)	Connection Method: Series (Up to 4): Series & Parallel (up to 4S4P)
Terminal Bolt Size: M8 x 1.25 × 12 mm	Dimensions: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm)
Weight: 21.38 lbs (9.7 kg)
2000W 12V Pure Sine Wave Inverter
Continuous Output Power: 2000W	Peak Power Rating: 4000W
Output Voltage: 1150V	Output Frequency: 60 Hz ± 0.1%
AC Output Sockets: 3	AC Terminal Block: 1
USB Power Port: 5V/2.1A	Power Output Control: AC On/Off Switch, and Remote Control
Output Waveform: Pure Sine Wave	Nominal Efficiency: > 90%
Operating Temperature Range: -4°F - 104°F	Cooling Fan: Thermally controlled
Dimensions: 17.8 x 8.6 x 4 in	Weight: 11.7 lbs

2000W 12V Pure Sine Wave Inverter Charger
Continuous Power: 2000W	AC Output Voltage Range: 100~120VAC configurable, 5V interval
DC Input Voltage Range: 10~16 VDC	Nominal Efficiency: > 90% Peak
Output Waveform: Pure Sine Wave	Output Frequency : 50/60 Hz
Input Voltage Range: 90-138 VAC	Input Wave Form: Sine Wave (Utility or Generator)
Operating Temperature: 0 ~ 40°C / 32 ~ 104°F	Storage Temperature: -30 ~ 70°C / -22 ~ 158°F
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER	Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Weight: 51.1 lbs / 23.2 Kg

WARRANTY INFORMATION
Panels: 10-year output warranty & material and workmanship warranty	Accessories: 1-year material and workmanship warranty

1. What do I need to complete my off-grid solar power system ?

A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.

2. What does off-grid and on-grid mean ?

On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.

3. Can I add more solar panels to the Rover 60A and expand my system power output?

Yes, more solar panels can be added to this system to increase the power output. The Rover 60A has a maximum PV input current of 60A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You can wire more solar panels in series / in parallel to achieve larger power output, however you are limited by the maximum input voltage and current the charge controller can handle. It is safer to build a system operating at around 90% of the rated voltage and current to ensure there is a tolerance for any system overvoltage or overcurrent.

4. Will this solar kit power my AC unit ?

In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the AC body. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power. Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.

5. When do I need an inverter ?

If you intend to use this solar power kit as a power supply for home appliances (e.g. coffee maker, TV, etc.), then you will need an inverter to convert the output voltage from a 12 VDC system to a 120V AC output socket. Renogy offers a variety of inverter products to suit your unique system and meet your power demand.

More questions about your off-grid power system? Learn more from Renogy Learning Center!

Marine

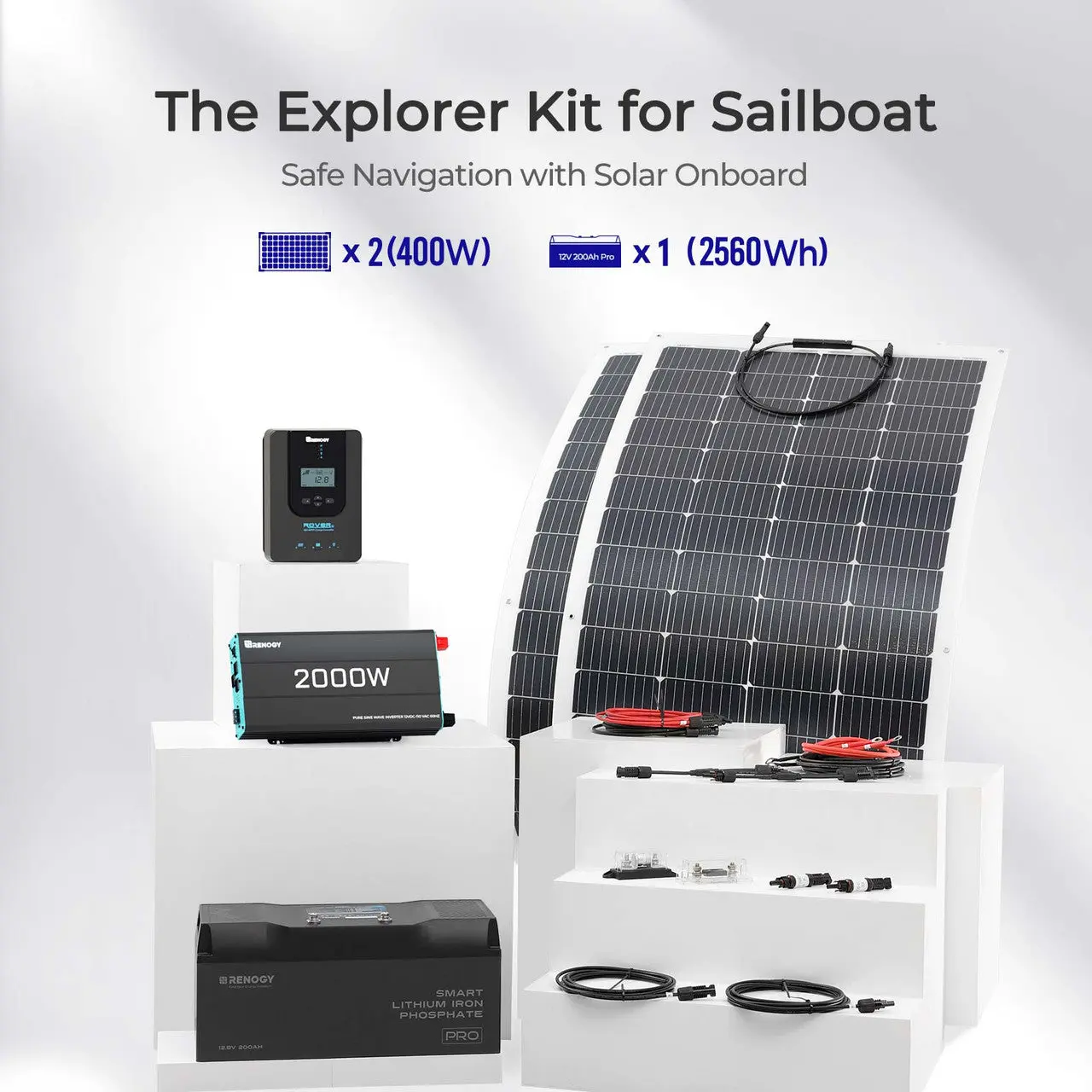

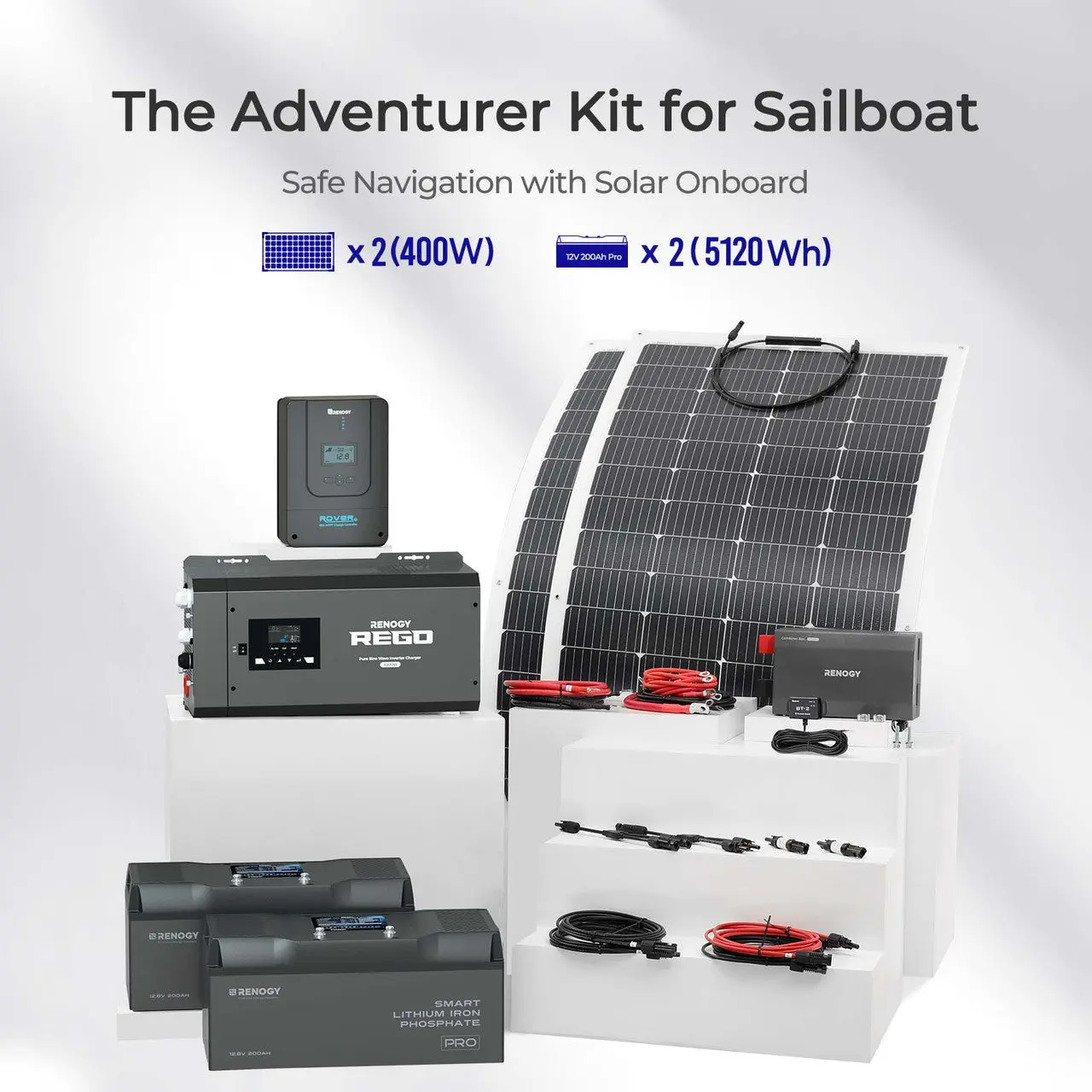

Sailboat Solution (2.56kWh | 5.12kWh)
